... to Victory and beyond! Overview items

Brass 0,2 mm, Plate 180 mm x 70 mm

Rings inbetween te balustres on the stern

Glazing bars for side pockets and quarter deck bulkheads

Stern windows

Assembly instructions Download PDF 1,7 MB; To the order information page ... click ...

Plate 2: Rigols

Brass 0,4 mm, Plate 180 mm x 40 mm

Lower battery straight, upper batteries curved

Assembly instructions Download PDF 0,7 MB; To the order information page ... click ...

Plate 3: Channel irons

Brass 0,4 mm, Plate 180 mm x 140 mm icl. neeles (needle heads still need some tuning, see instructions)

incl. futtock shrouds irons with hooks and Chain wales supprt stanchions

Assembly instructions Download PDF 3,6 MB; To the order information page ... click ...

Plate 4: Decks

Includes now a nice amount of netting for the hammock cranes!
Brass 0,4 mm, Plate 180 mm x 140 mm

Gunlocks

Boarding Pikes with holder

Mizzen boom saddle,mizzen belay pin holder, stanchion for netting on the heads

Binnacle with two compasses, lid for cheminee

Hammock cranes Nr 30, supports for boom saddle

Hammock cranes forecastle, 2 versions in one: high and low

Hammock cranes waist and poop

Hammock cranes quarterdeck and holder for fire buckets

Hinges for side davids, columne for the wheel, arm for the ship´bell, handles for chemnee, stanchions

Stun sail fittings, arms for elm tree pumps, arms for lanterns

Poop skylight

Stanchions fighting tops, skylight poop, spectacle plate, stun sail fittings

Assembly instructions Download PDF 7,1 MB; To the order information page ... click ...

Plate 5: Lettering and decoration

Brass 0,2 mm, Plate 180 mm x 70 mm

Lettering figure head with backup

crown figure head

Positioning help

ship´s name with positioning help

Flap for the cheminee, parts for carronades, crown for stern arm of coats, eyebolts in 2 different sizes

Gun monograms in 2 sizes, eyebolts

Flaps in 2 sizes, driving gear carronade, draught marks with back up

Cover flag locker

Assembly instructions Download PDF 4,8 MB; To the order information page ... click ...

Plate 6: Gunport lid fittings

Brass 0,4 mm, Plate 180 mm x 140 mm

Different fittings for the 4 different decks

Half lids, hight adjustment carronade, template for gunport lanyards, missing supports for the channels

Eyebolts for the fittings, 4 pieces each lid, incl. back up

Assembly instructions Download PDF 2,1 MB; To the order information page ... click ...

Plate 7: Ringbolts and hooks

Brass 0,4 mm, Plate 180 mm x 280 mm

Eyebolts and hooks, outer diameter 1,3 mm, inner diameter 0,7 mm: 600 eyebolts, 360 hooks

Eyebolts and hooks, outer diameter 1,6 mm, inner diameter 0,8 mm: 600 eyebolts, 220 hooks

Eyebolts and hooks, outer diameter 1,8 mm, inner diameter 1 mm: 440 eyebolts, 180 hooks

Eyebolts and hooks, outer diameter 2 mm, inner diameter 1,25 mm: 375 eyebolts, 160 hooks

Clamps 2 mm 48 pieces, 3 mm 58 pieces, 4 mm 73 pieces
Haken

Assembly instructions Download PDF 1 MB; To the order information page ... click ...

Plate 8: Gratings

Brass 0,4 mm, Plate 180 mm x 130 mm

Gratings 0,4 mm

Gratings 0,5 mm

Gratings 0,75 mm

Bottom side with vsible battens

Assembly instructions Download PDF 0,7 MB; To the order information page ... click ...

Resin 1: Pilasters for stern and side galleries

6 pieces of pilasters. Original pilasters of the model must be removed. Specially adapted to Heller 1:100. Details of the pilasters follow the elegant curve of the stern arch.

Assembly instructions Download PDF 8,5 MB; To the order information page ... click ...

Resin 2: Side entry port plus steps

Resin, set for both sides

Paint suggestion

Assembly instructions Download PDF 8,5 MB; To the order information page ... click ...

Resin 3: Set of 4 Bowers, 1 Stream und 1 Kedgeanchor fitting for 1805

Correct form for 1805, slimmer than the kit´s ones and with sharp angle inbetween the arm and the shaft as described by Steel and other contemporary sources.

Here are the dimensions of the 3 type of anchors. Each comes in 4 pieces, not assembled

As contemporary sources show, the arm and the shaft meet at a sharp angle, no rounding to be seen.

The nut for the stock on the bower and stream anchors. The halves of the stock have a matching recess.

The kedge anchor has its stock already cast on and is meant to be stored on the aft starboard bower.

The lock to hold the stock in place has its security line hanging slack.

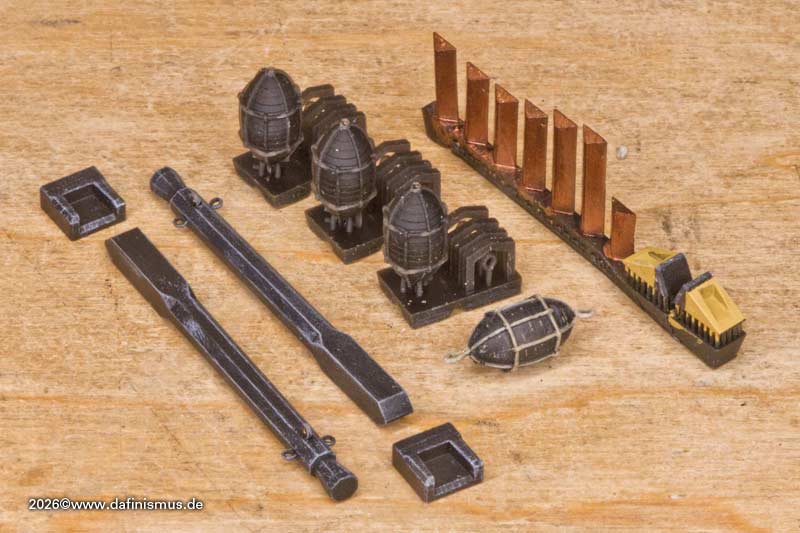

Also included are 4 boyes and 2 anchor shoes as the cast on ones are misplaced.

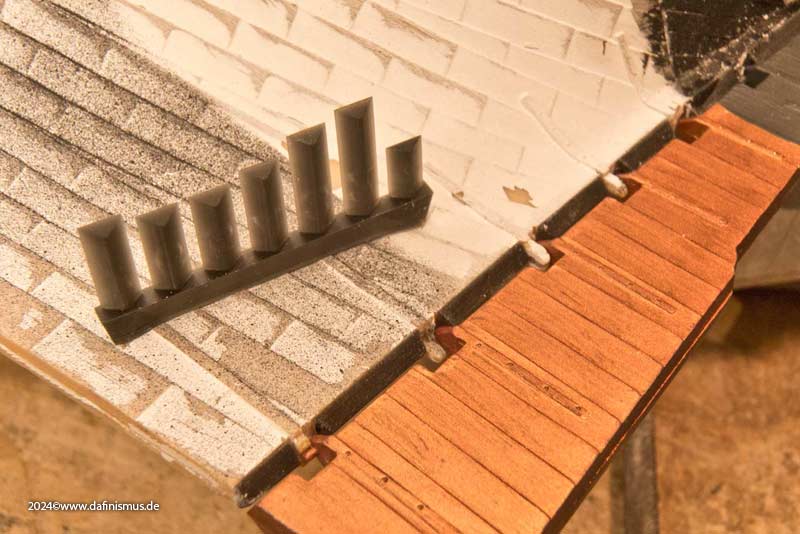

New are triangular pieces to close the gap inbetween the stern post and the rudder

Assembly instructions Download PDF 8,5 MB; To the order information page ... click ...

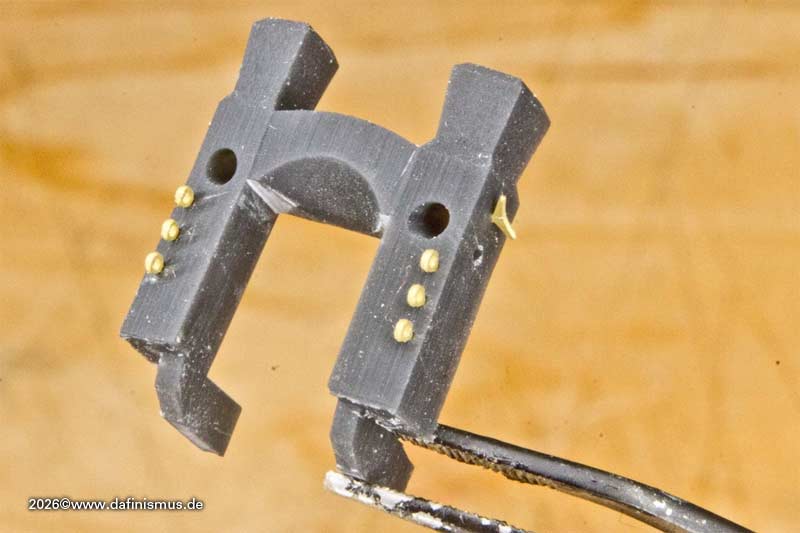

Resin 4: Knight heads

Resin. Stabilisieren den Bugspriet seitlich und in der Höhe

Eyebolts and clamps not included, these are parts of plate 7.

Assembly instructions Download PDF 8,5 MB; To the order information page ... click ...

Resin 5: Bitts

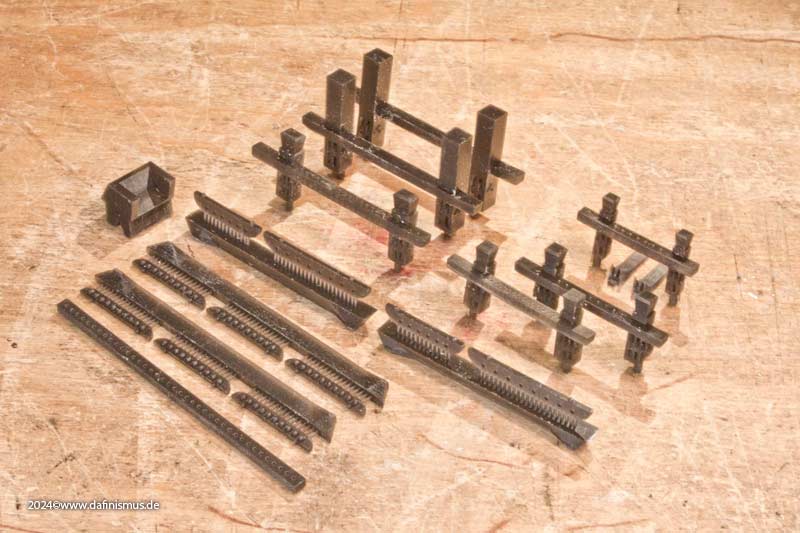

Resin, 2 pieces fore mast bitts for 9 and for 17 belaying pins, 1 piece main mast bitt for 17 belaying pins und 1 piece mizzen mast bitt for 7 belaying pins and partners.

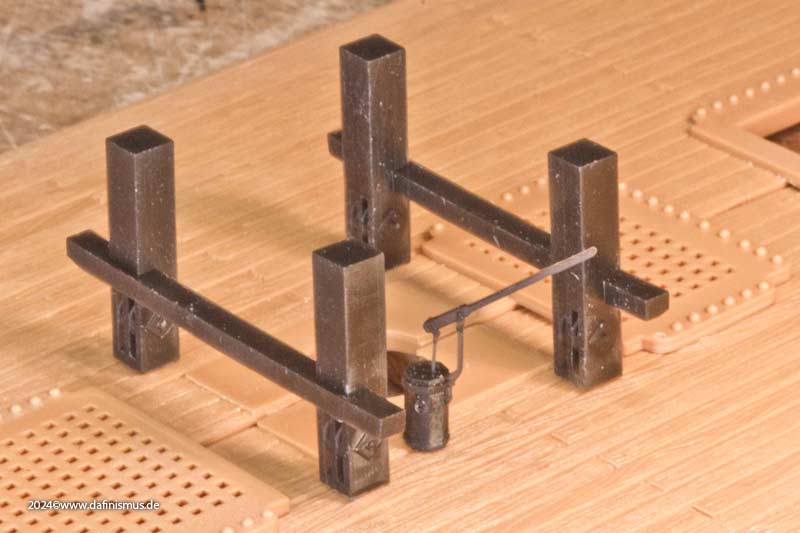

Also includes 2 main mast bitts for the lower deck and the elm tree pump, the belaying pins boards and shot garlands of the quarter deck ballustrade. Comes with a template to make belaying pins out of wire and white glue and a cutting template for the wire.

New are the main mast bitts for the upper gun deck and the elm tree pump

See the kit´s part with an unpaited and a painted version

Included is a template for making belaying pins out of 0,5 mm wire and white glue. Printed belaying pins would be too fragile for rigging :-)

With some weathering it could look like this.

Assembly instructions Download PDF 8,5 MB; To the order information page ... click ...

Resin 6: Center shield of figure head.

Center piece of the figure head. Crown and figures not included. Here front and flip side in one picture including the adapter for the head.

<

Left the original kit part, right the painted new print.

Included is the extension of the bow on the backside of the piece.

Paint suggestion of the prototyp, once with the imprinted letters, once with the letters replaced by etch parts for better detail:

<

Assembly instructions Download PDF 8,5 MB; To the order information page ... click ...

Resin 7: Catheads and catblocks

2 cat head with with matching cat blocks. The cat head has the star of the Order of the Garter as decoration, which is shown on contemporary models and pictures of the Victory. If the crown symbol of today's ship is desired, the star can be ground off and the kit part used. The block´s hooks are included as a printed part, but a replacement of 1 mm wire is recommended as the resin hooks are very fragile.

Paint suggestion

Assembly instructions Download PDF 8,5 MB; To the order information page ... click ...

Resin 8 Gun Gear

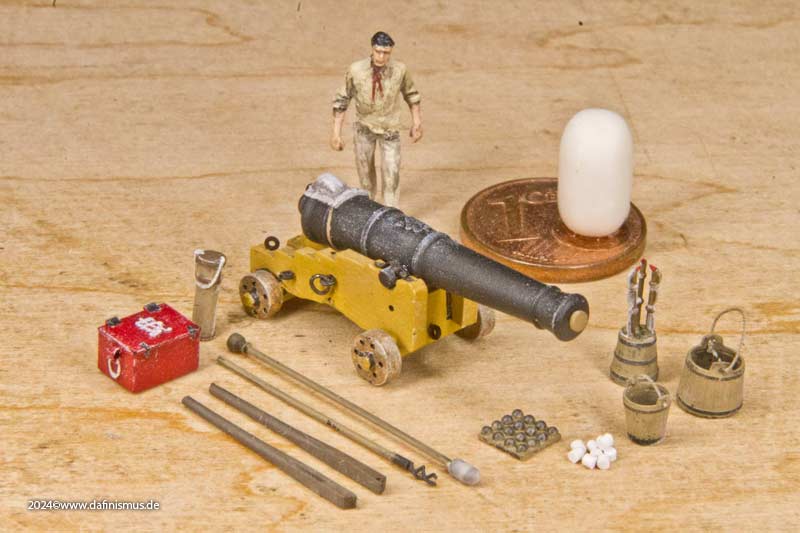

1 Set 36 Pieces Fire Buckets with GrIII Cypher, 24 Sponges/Rammer, 24 Worms, 48 Levers for adjusting Direction and Angle of the Shot and 24 Gunracks as seen on the wreck of HMS St, George 1811 (Racks not pictured). Fire buckets can also be used for the hooks on the quarter deck above the steering wheel.
Gunbarrel not included, only for scale. Parts are coming in unicolored Resin and need to be painted.

Assembly instructions Download PDF 8,5 MB; To the order information page ... click ...

Resin 9: Casks

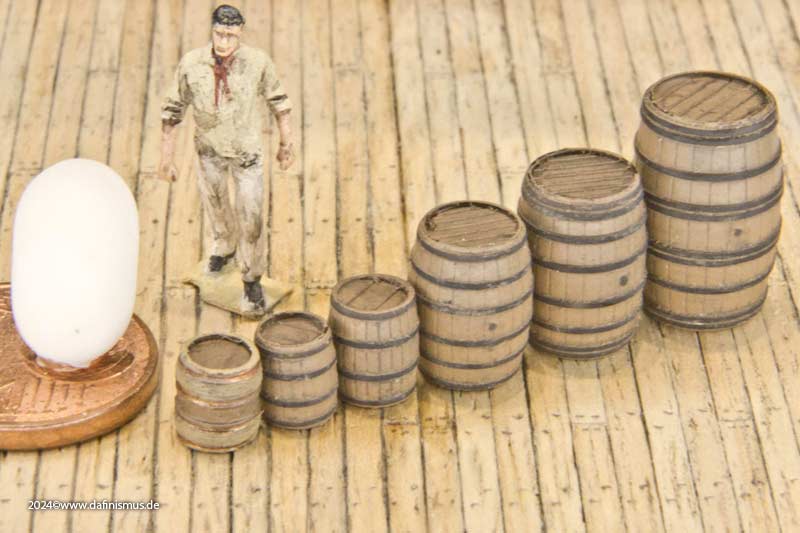

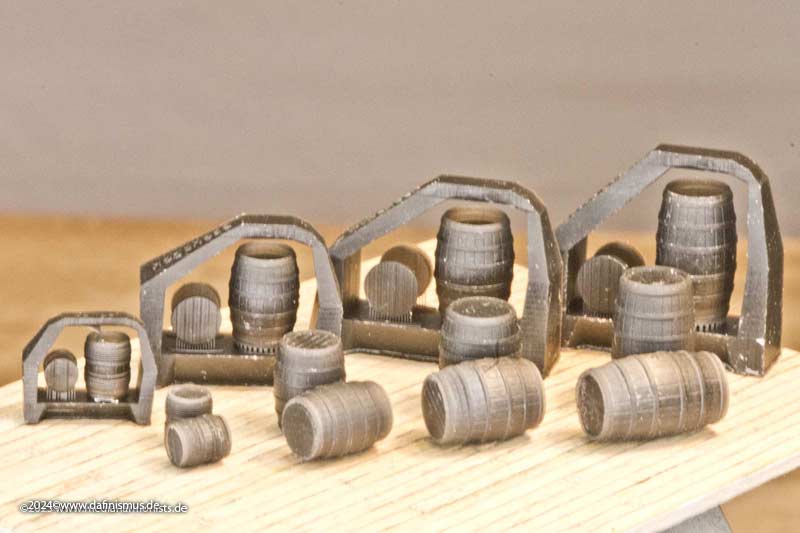

32 casks in the sizes of: 12 x Leaguer, 4 x Puncheon, 4 x Hogshead, 4 x Kilderkin, 4 x Firkin, 4 x powder barrel, each in three parts.
Other number of casks for special duties please do ask.

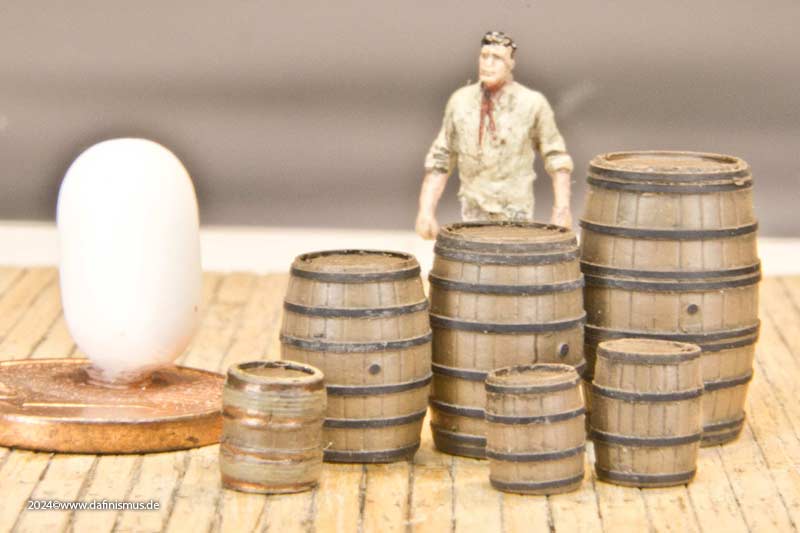

Attention was taken onto the different variations of hoops.

Assembly instructions Download PDF 8,5 MB; To the order information page ... click ...

Resin 10: Gratings Fo´castle

Aviable soon

Resin 11: Channel Boards

Aviable soon for etch parts Plate 3. the foremast channel boards are much wider than the kit´s ones.

Masts and Rigging

Resin 20: Blocks for standing and running Rigging: Over 2000 Parts in 3 Sets combined

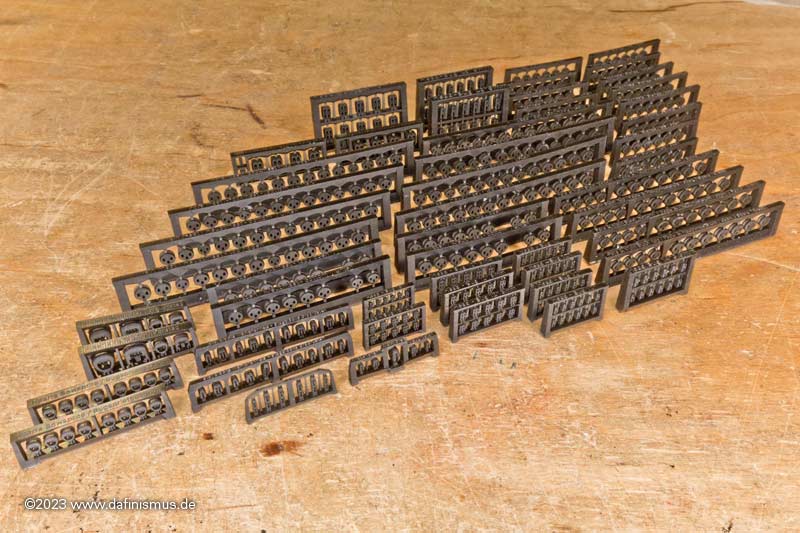

Complete set rigging items for HMS Victory as around 1803. The sets consist of deadeyes, standing and running rigging.The size of the blocks ranges from 2 mm to 6.6 mm.

The number and size of the blocks is based on the description by David Steel in 1795. The numbering is based on McKay's Anatomy of the Ship. Via the names of the ropes the assignment to Longridge is also given. Sizes were slightly adapted for model building, brought into buildable dimensions and optimized for the respective size. Plus some variants and replacement blocks.

Note: The Excel list supplied only assigns the dimensions of blocks and ropes. It is not an independent rigging guide!
Parts are coming in unicoloured resin and need to be painted.

Here is a group picture of the dead eyes and the blocks of the standing rigging. Those 2 sets consist of about 885 pieces.

Deadeyes 252 Parts

Complete set of deadeyes 252 parts. The deadeyes are optimally adapted to the etched parts on plate 3.
Also included are the deadeyes for the backstay stools and then fighting tops. Each set is labelled per channel board for easier assignment. The parts come in single-colour plastic and must be painted.

Lower and upper deadeye are adapted to the place of use: the lower one has a slot for the brass etch part, the upper one has a groove for the shroud.

Blocks standing Rigging, over 233 Parts

All parts of the standing rigging, including the hearts for the stays and the bow rigging, also all special blocks for the backstays as well as normal blocks. Where appropriate, the blocks are grouped together in labelled groups. A good number of replacement blocks of all sizes is included.

Comparison of the different special blocks

Hearts for main- and forestay incl. preventers and the rest of the head gear.

v Stayblocks

<

Test Assembly: The bow gear with its 22 hearts on the revised Heller kit.

Test Assembly sister block with lift and fall

Test Assembly Sisterblock lashed in between the shrouds.

Blocks running Rigging

The Running Rigging consists of 937 parts plus replacements, plus 199 parts for parrels, from the triple and doube jeer block of 5,6 mm down to the normal block shape single and double in 2 mm. The blocks come in unicoloured plastic and must be painted. Where appropriate, the blocks are grouped together in labelled groups.

There are always a few spare blocks available. All 2 mm blocks also come with a spare 2.5 mm block in case the small ones are too small for handling.

Some of the blocks require very thin yarns, down to 0.2 mm diameter. A table showing the intended use of the blocks and the rope thicknesses to be used for the respective location is provided.

Block collection main mast per yard

Block collection jib mast per yard
<

Block collection cross mast per yard
<

There are also sets for headsails, stun´sails and davits as well as the necessary racks.

Application examples:

Jeer blocks in black and wood colouring

Test Assembly: Clewline blocks 2 mm painted and stropped

Test Assembly: shoulder and quarter blocks

Test Assembly: Mainyard of the kit 1:100with the inner blocks

<3 sizes of parrels
<

Test Assembly: long tackles

Trial fitting of the 2 mm blocks, the smallest in the set.

Detailed specifications for the block sizes and rope thicknesses to be used in english available. This is no complete rigging instructions but has to be used in coordination with other sources.

Assembly instructions Download PDF 8,5 MB; To the order information page ... click ...

Resin 21: Mastheads and fighting tops, 18 Parts

Two-part fighting tops according to the Admiralty Order of November 1802 and mastheads in their correct conical shape, optional shoulders or brackets for the yard hangers. The supports for the railing come from board 4 or have to be built by yourself. Netting for the railing is supplied.

Comparison of kit and new mast heads.

Wahlweise mit Schulter oder Klammer für die RahOptionally with shoulder or clamp for the yard hanger.-Hanger.

The combination with the kit parts, brown is kit, black are printed parts.

Trial assembly with rear railing. Netting for the 3 tops is included in the delivery, the supports and the bracket for the lantern come from the etched parts plate no. 4 or must be produced by yourself.

Assembly instructions Download PDF 8,5 MB; To the order information page ... click ...

Back to the top of page

Resin 22: Dead Eyes

Only the dead eyes from R20 for plate 3 for unrigged models.

Bauinformationen Download PDF 8,5 MB;

Assembly instructions Download PDF 8,5 MB; To the order information page ... click ...

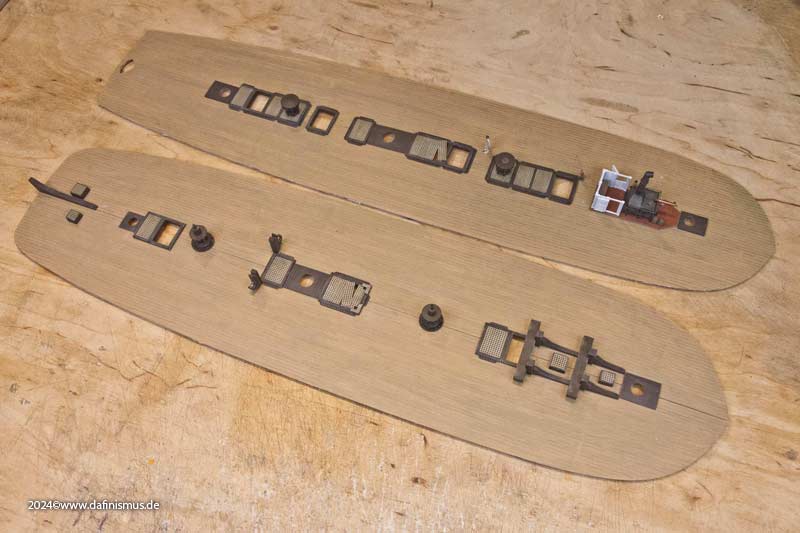

Victory spezial lower Decks

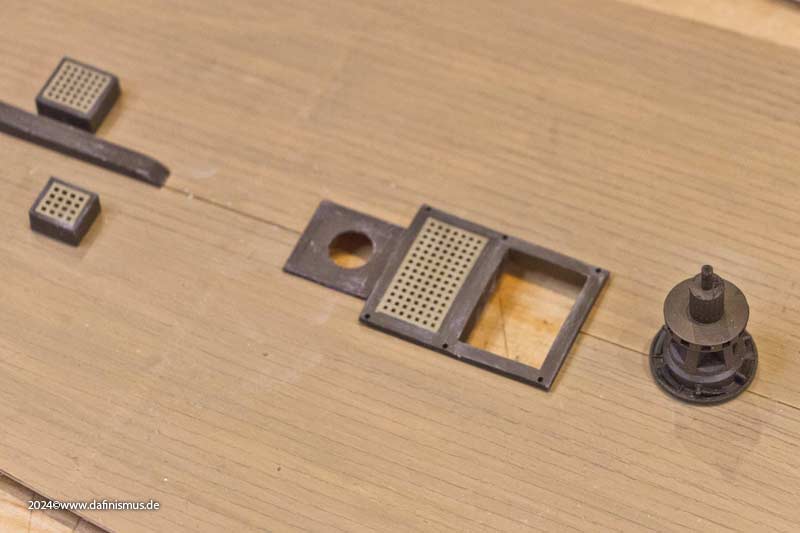

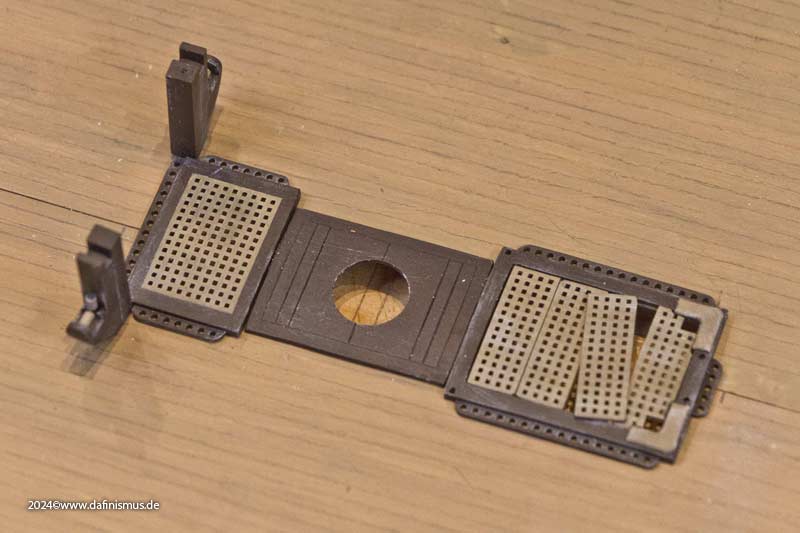

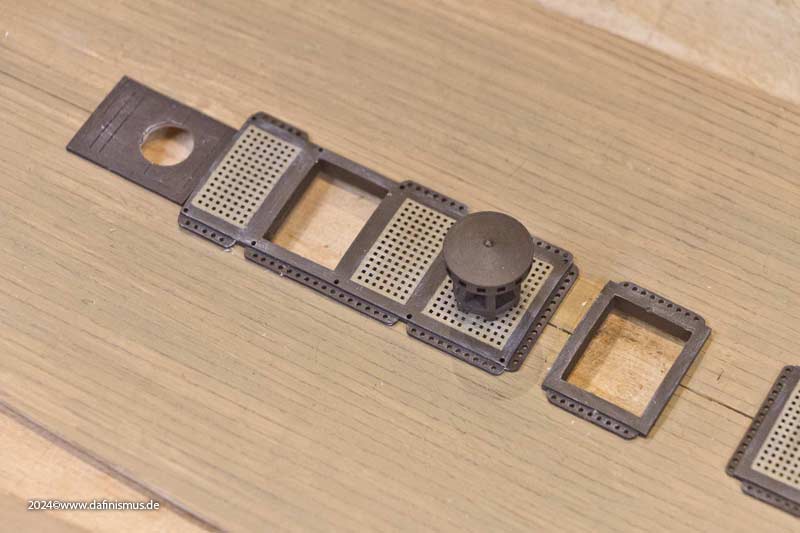

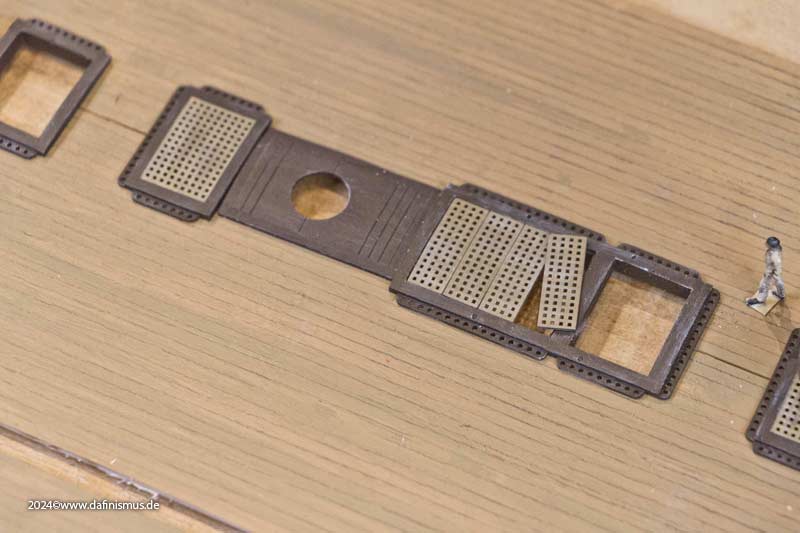

Resin 30 Gratings lower decks

Gratings with coamings and some shot garlands. Available soon.

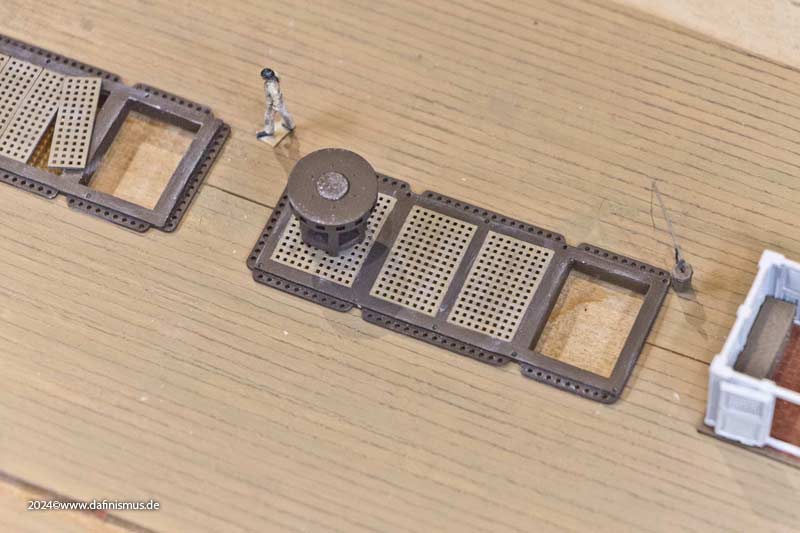

Resin 31: Riding bitts

Riding bitts with nails and holes for stopperss, 10 parts

Assembly Instructions Download PDF 8,5 MB; How to order ... click ...

Resin 32: Pumps lower decks

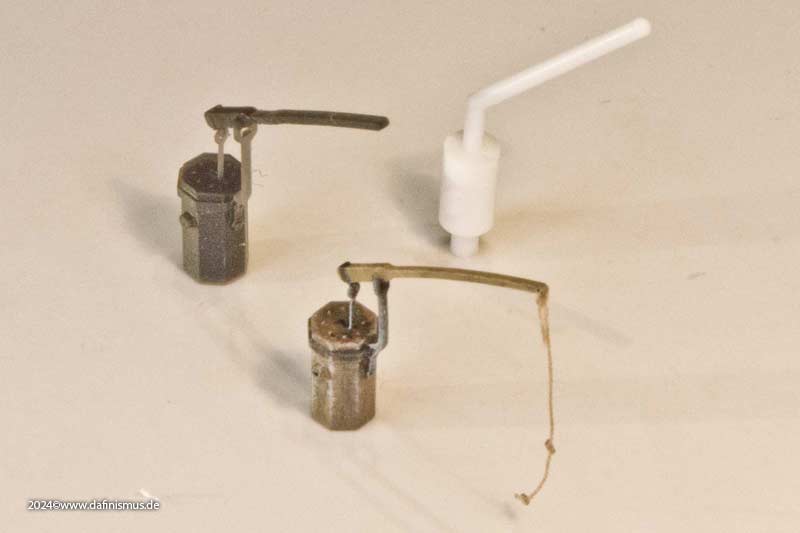

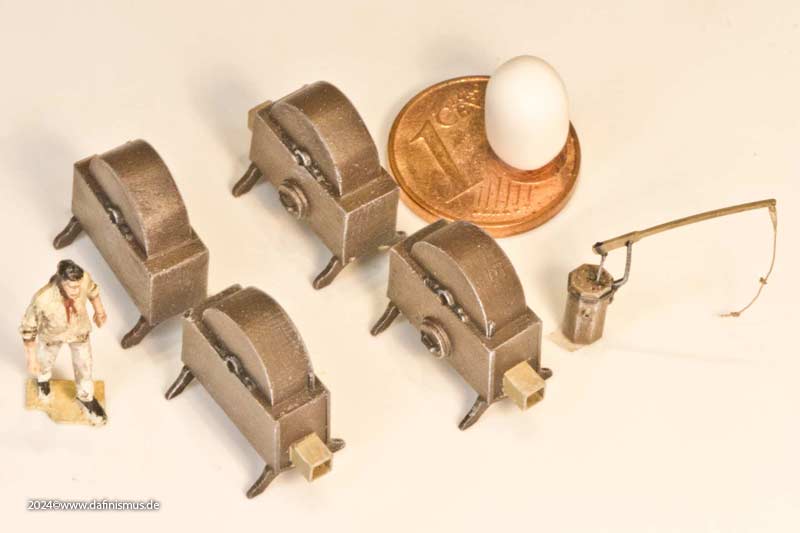

4 pieces of chain pumps, 5 pieces elm tree pumps, 4 tubes to the upper decks

Assembly Instructions Download PDF 8,5 MB; How to order ... click ...

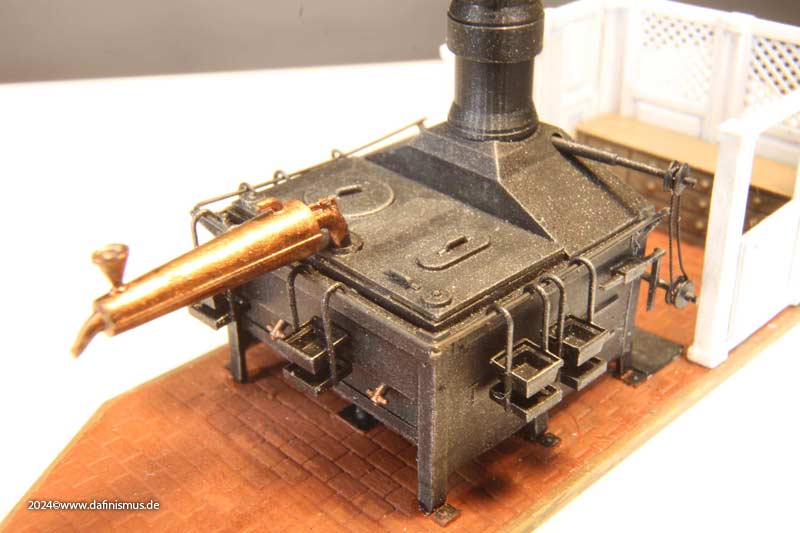

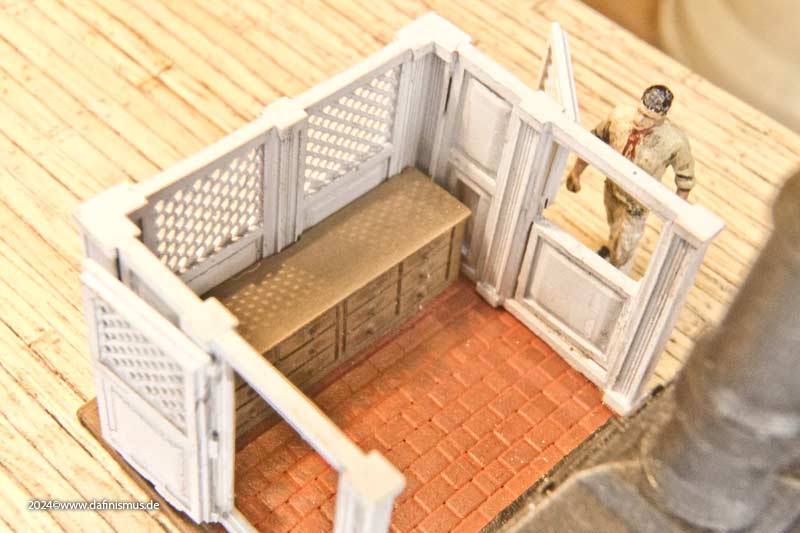

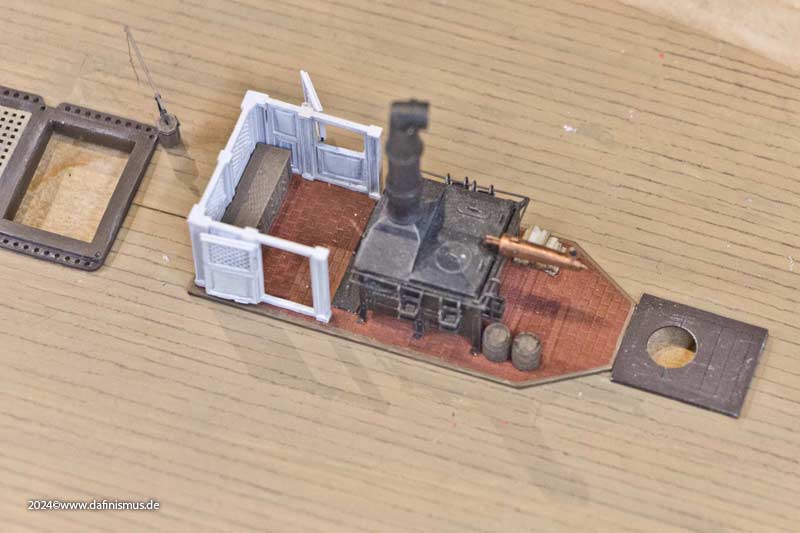

Resin 33: Brodie Stove with pantry

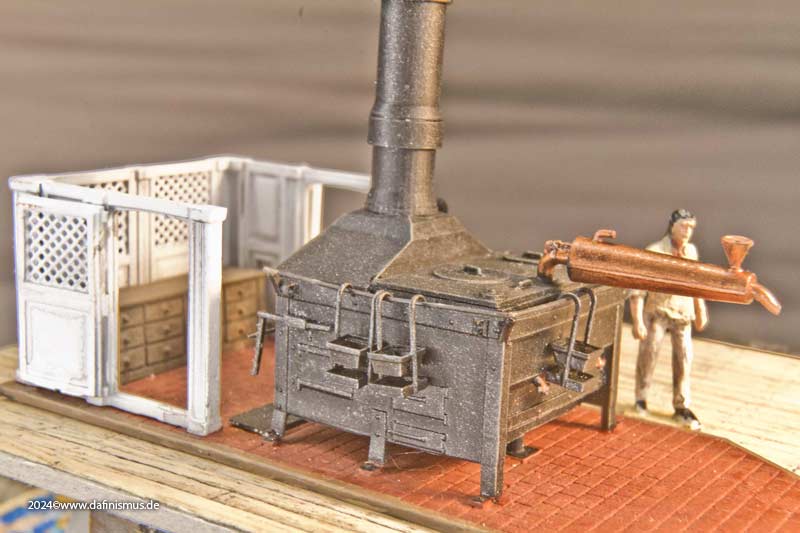

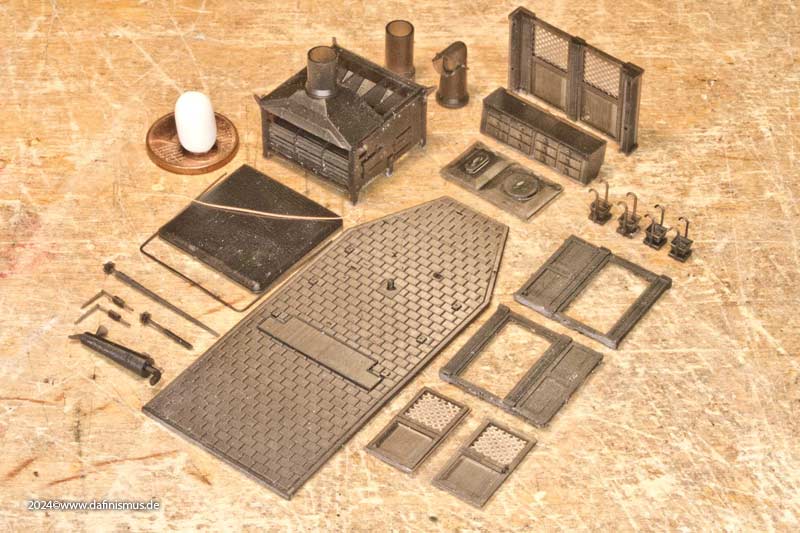

Assembly kit 22 parts, incl. wire for thin parts. BIncludes tiled base, pantry and warming pans. Doors can be displayed closed, half opened or opened.

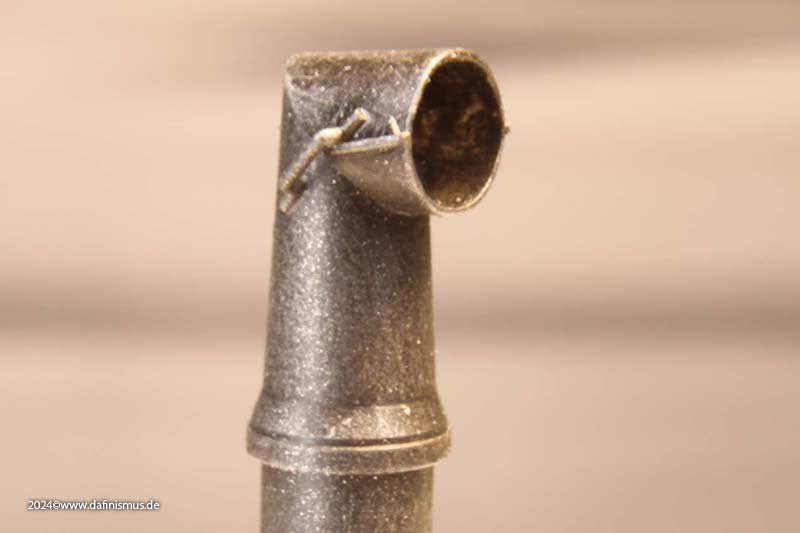

The chimney is rotable, the flat cover is on plate 4.

Assembly Instructions Download PDF 8,5 MB; How to order ... click ...

Resin 34: Capstans

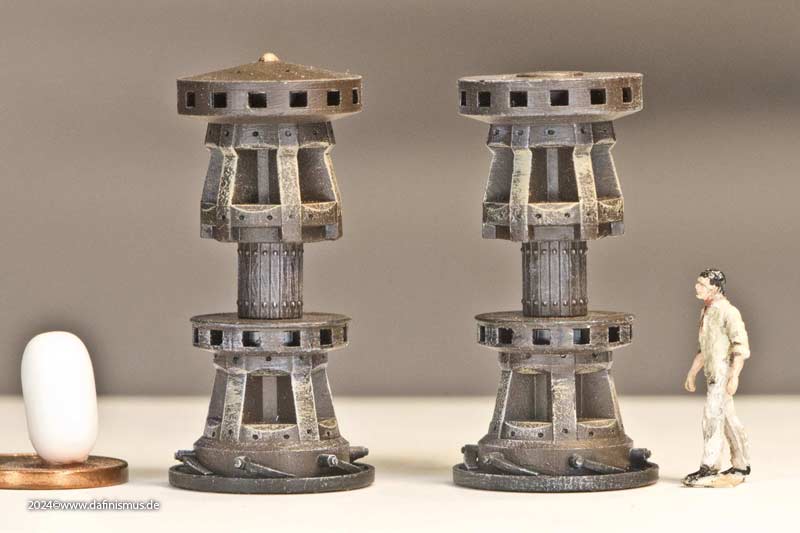

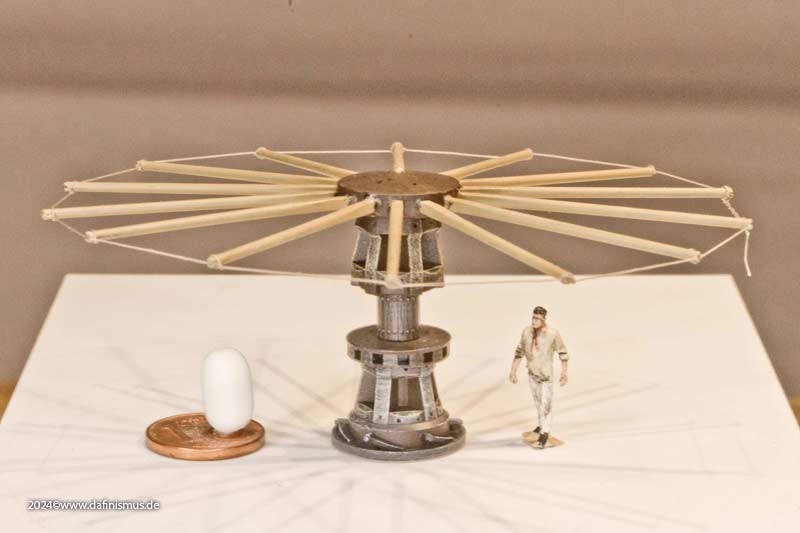

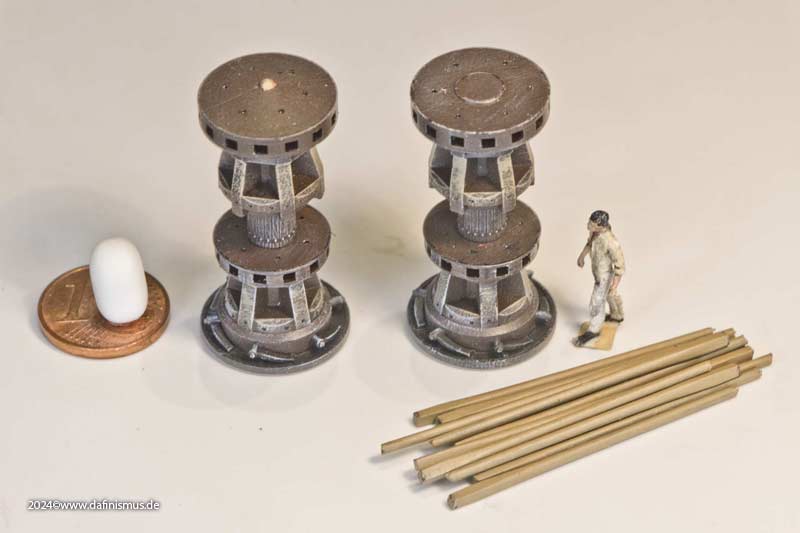

2 double dek capstans, each in 3 pieces plus 2 sets of capstan bars.

Assembly Instructions Download PDF 8,5 MB; How to order ... click ...

Boats

Resin 40 Masts and oars for the kit´s boats

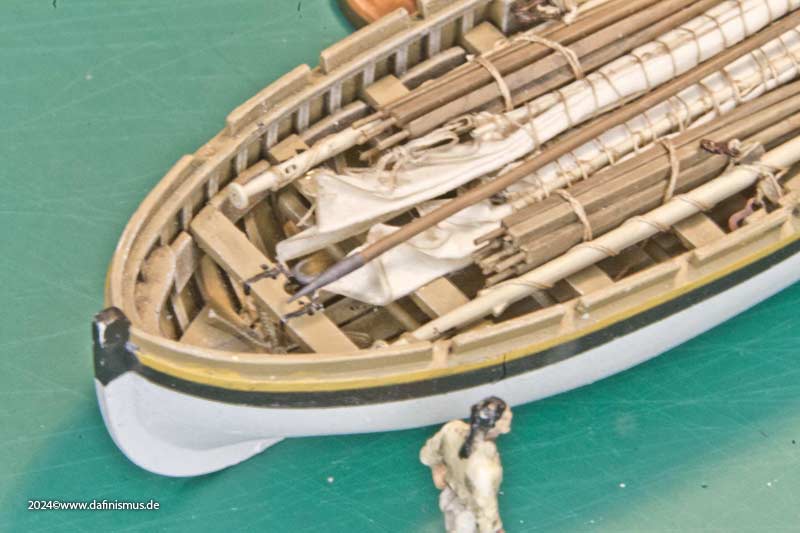

1 set of masts and oars to equip the 3 stowed boats included in the kit. Plus 2 small barrels each. Note: Masts are very thin and have limited load-bearing capacity when rigged. (The launch shown in the pictures Resin 41 and is not included. Neither are the sails.)

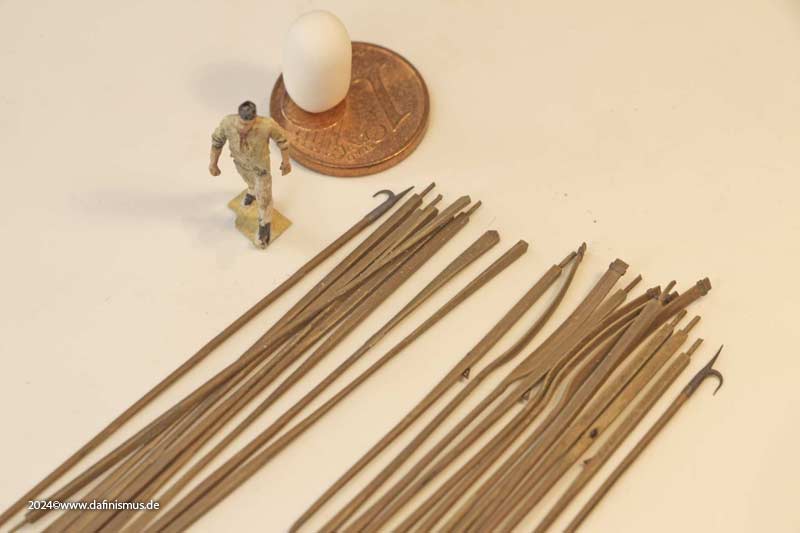

Various types of oars and sweeps for launch and the smaller pinnaces, as well as boat hooks.
<

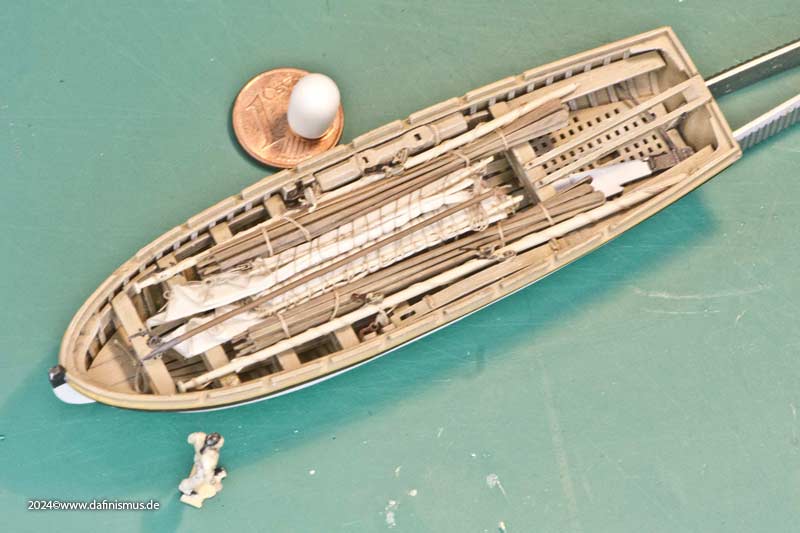

Example images of the stowed launch. (Sails, eye bolts and hooks not included in the set, come from Platine 7.)
<

Assembly Instructions Download PDF 8,5 MB; How to order ... click ...

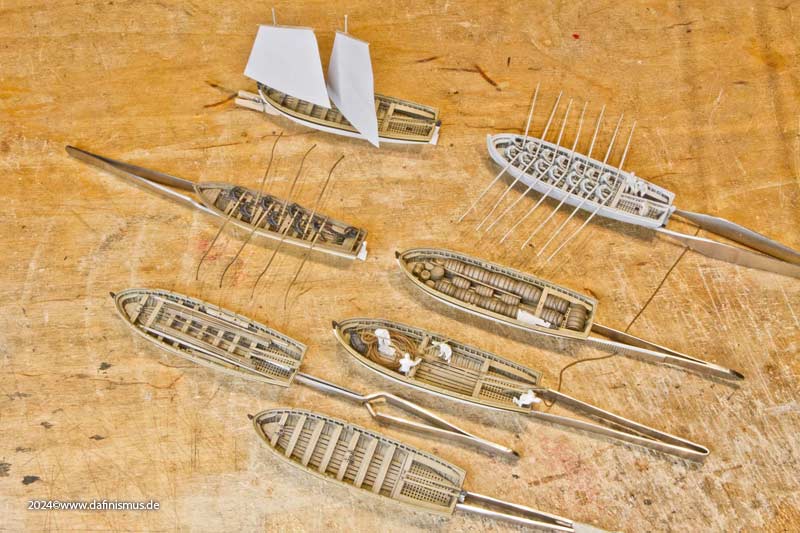

Resin 31: 33 foot launch

The largest boat carried for heavy transport. Can be built either as a stowed, rowed or, to a limited extent, rigged vessel. Contains 1 piece with over 40 parts, including masts, oars and two small barrels.

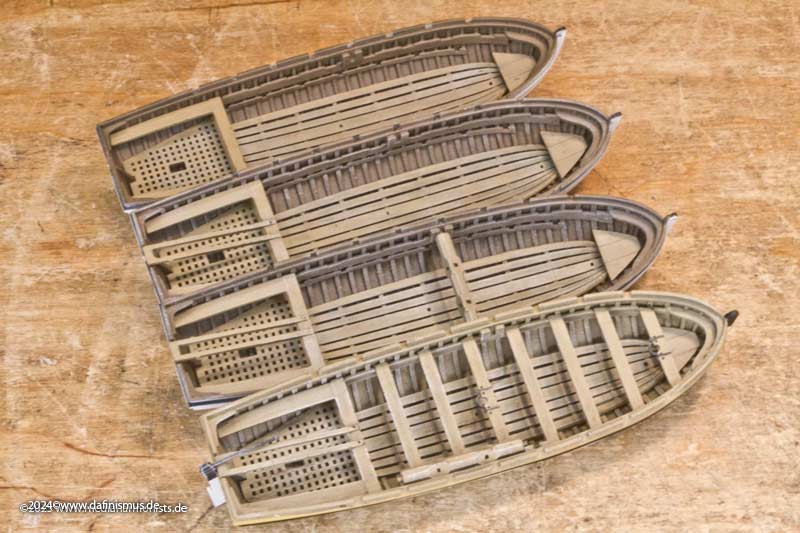

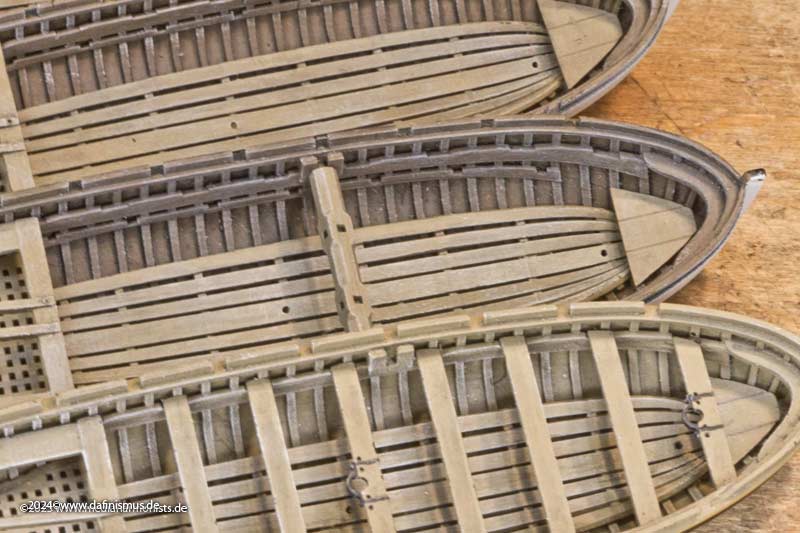

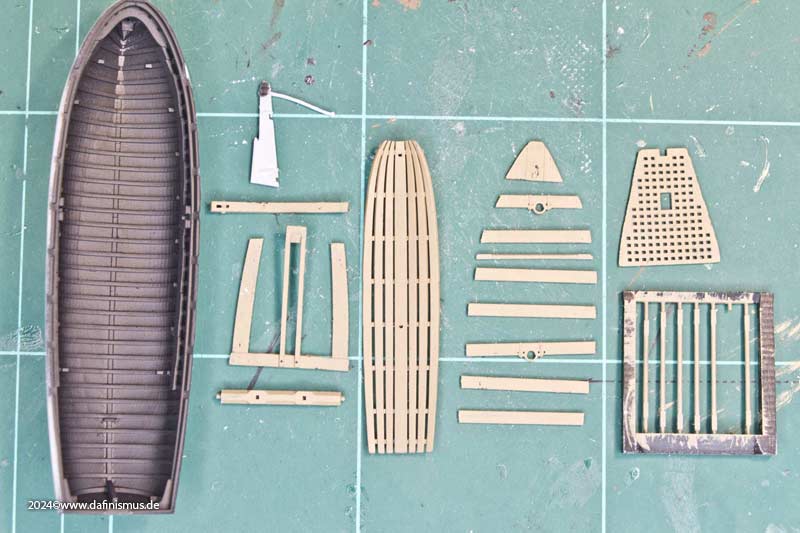

Different stages of assembly.

The entire fleet of different display options. The kit contains the stowed basic version including the parts of resin 30. If you would like to build a different version, please send us a short message.

Assembly Instructions Download PDF 8,5 MB; How to order ... click ...

Resin 32: Crew for the launch

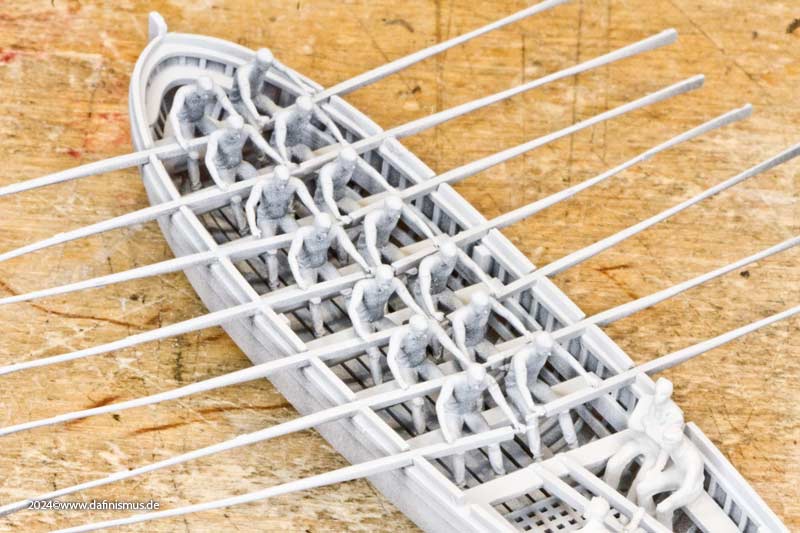

14 oarsmen and 1 Mann on the tiller.

Assembly Instructions Download PDF 8,5 MB; How to order ... click ...

Victory Gun Set

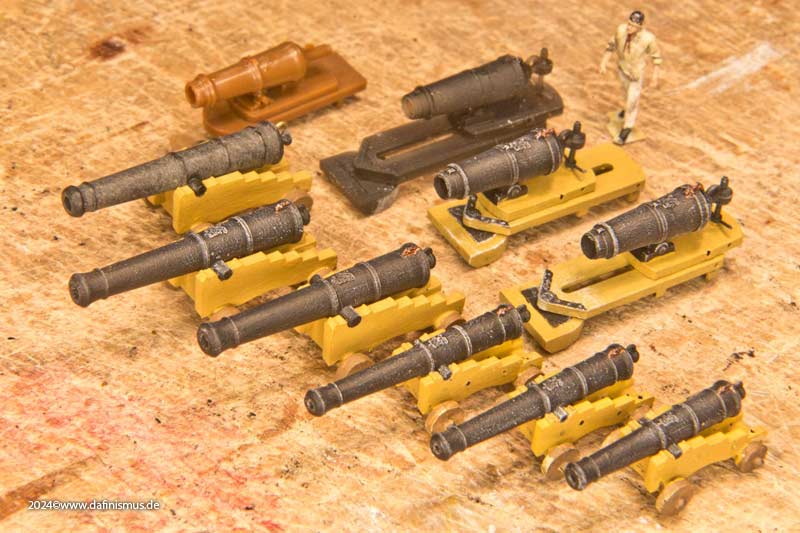

Resin 51: 106 gun barrels for the kit´s carriages

For use with the kit carriages. Unlike the two-piece kit barrels, these printed parts have very cleanly defined muzzles, all breechrings rings and coat of arms monograms. Tompions are supplied separately.
Incl. 2 carronades with adjustable carriages and slides.

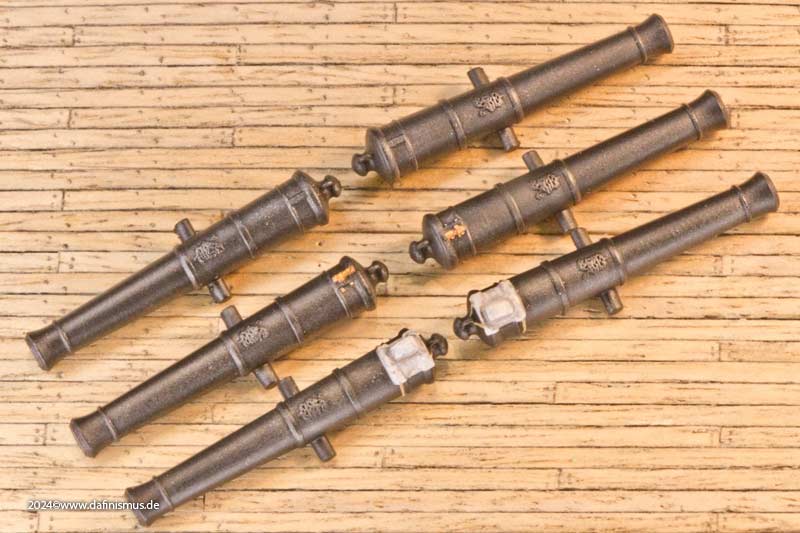

All barrels are available in 3 versions –
A: exposed powder pan, B: lead apron or C: gun lock

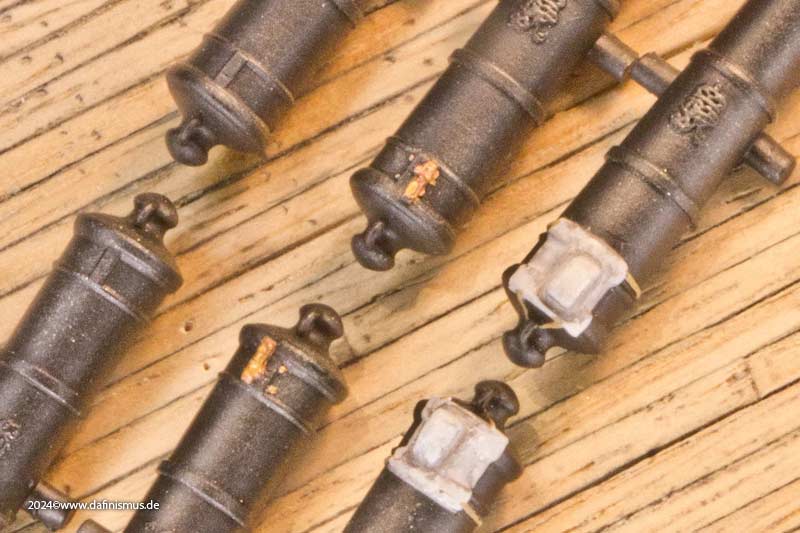

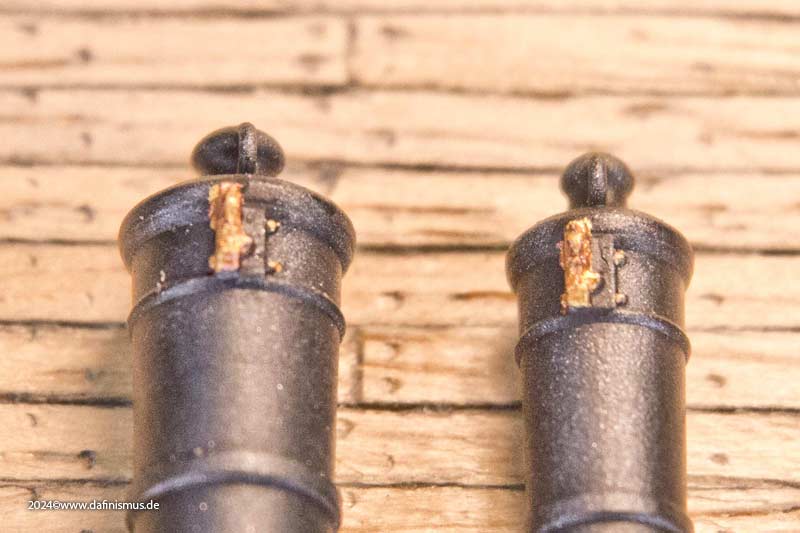

Gun locks and aprons are located on the starboard side of the barrel, as per the original design.

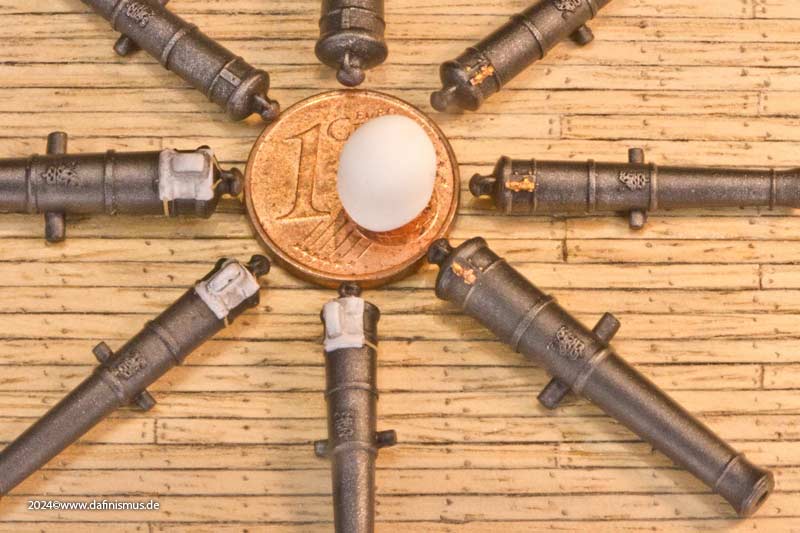

Here are the powderpan/gun lock/apron variants

The tompions are delivered separately and can be painted in the desired colour: wood, red or white.

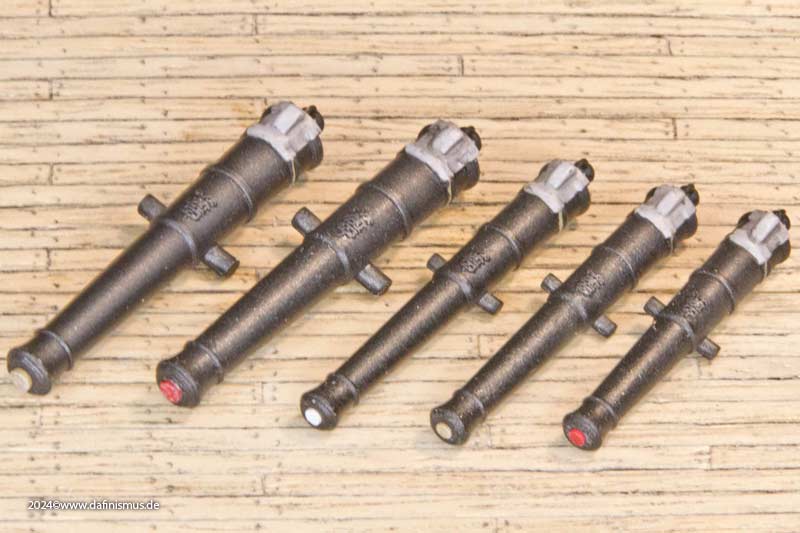

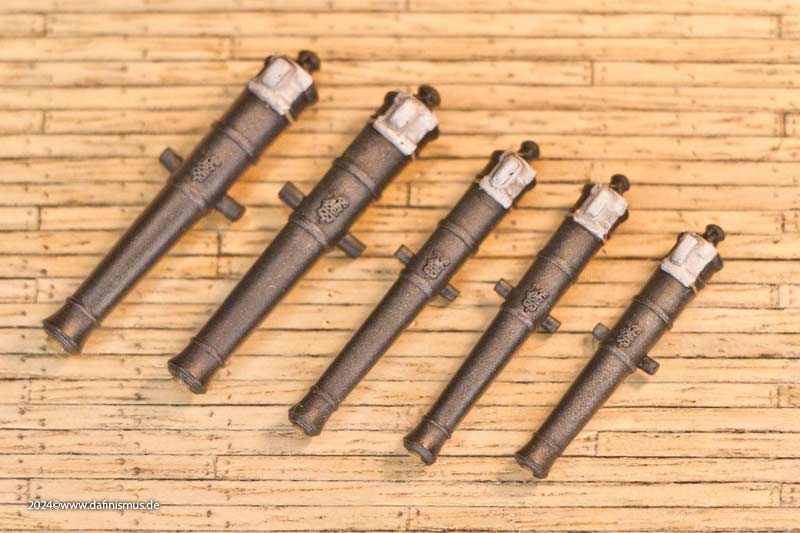

Here is the set of the 3 variants. The number of individual barrels corresponds to the number required for the model.

Carronades with multi-part gun carriage and rotating slide. Here once unpainted and 2 different painted positions in comparison with the kit part. Including the lever for changing direction (not shown in the picture).

Family picture with 2 kit barrels (each at the rear) on the kit carriages: 12-pounder short, medium and long, 24-pounder and 32-pounder and carronades.

Assembly Instructions Download PDF 8,5 MB; How to order ... click ...

Resin 51: 106 guns complete with new carriages

Gun barrels and highly detailed gun carriages with stag horns and eyebolts. Note: Cannot be combined with Resin 50, as a different trunnion solution is used here.
Available soon.

Resin 52: Showguns Fo´castle and Quarter Deck

Carronades with carriages, chasing guns and quarterdeck guns for kit carriages.
Available soon.

Resin 53: Pulleys and hooks for the gun tackles

Pulleys and hooks for all 106 guns.
Available soon.

Resin 54: Guntackles resin stowed

Stowed guntackles as an resin imitation.
Available soon.
