... to Constitution and beyond! Overview parts

NEU! Resin Con 1: 24 Carronades upper Deck plus 1 Chase Gun ... more ...

NEU! Resin Con 2: Long Guns Gundeck ... more ...

NEU! Resin Con 3a: Blocks for Gun Rigg ... more ...

NEU! Resin Con 3b: Blocks for Carronaden, Stowed Tackles for long Guns Gundeck ... more ...

NEU! Resin Con 4: Hanging Knees of Gundeck ... more ...

NEU! Resin Con 5: Hawses ... more ...

NEU! Resin Con 6: Window Bars + Piece of Hull ... more ...

NEU! Resin Con 7: Planking inner Bulkwards Spardeck ... more ...

Assembly Instructions will follow soon.

Resin Con1: 24 Carronades upper Deck plus 1 Chase Gun / Gunnade

In the shape of the classic carronade, three-part with barrel on carriage, lower carriage and front rack. Parts are supplied unpainted in unicoloured resin. The eyebolts must be supplemented with etched parts from plate 7 or with self-made wire eyelets.

Here are some pictures of a painted example with eyebolts from plate 7.

The carriage is movable ...


... and can also be turned sideways.

The gun can also be orientated sideways and even stowed against the ship's side.

The chase gun / gunnade in comparisson with the normal 24 pdr gun. See the gun cypher of GRIII.


Assembly Instructions available soon; To the order information page ... click ...

Resin Con 2: Long guns from gunddeck

Classic long gun in contemporary dimensions. The angle of the barrel can be changed slightly. Guns come in 2 parts unpainted in unicolour resin and must be painted.



The gun can be swivelled up into the stowed position by pinching off the wedge and the chair bed.

View into the gun deck.

Here are some pictures of a painted specimen with eyebolts.


Assembly Instructions available soon; To the order information page ... click ...

Resin Con 3a: Blocks for gun rig

Set of approx 400 2mm blocks for classic gun rigging. Both single and double blocks included.

Here are two fully rigged specimens.


Assembly Instructions available soon; To the order information page ... click ...

Resin 4: Blocks for gun rigging carronades and printed side tackles stowed for lower deck

Normal blocks for the carronades and easy to assemble printed side tackles for the lower deck.


One painted specimen


Installed on site


Assembly Instructions available soon; To the order information page ... click ...

Resin 4: Hanging knee gun deck

The characteristic hanging knees in the gun deck. The set consists of 34 pieces. We recommend doubling the hull sides to 5 mm.

Painted version

Assembly Instructions available soon; To the order information page ... click ...

Resin Con 5: Hawses

Corrects the incorrect angle of the anchor fairleads. Existing fairleads must be drilled out to 5 mm. The set consists of 4 fairleads and 4 replacements also to be used for fairing the inner opening.


Build in

Assembly Instructions available soon; To the order information page ... click ...

Resin Con 6: Stern windows and piece of hull

Old window bars must be removed. The pieces of hull completes the missing parts behind the galleries. Including spacer bar on the inside between the windows. Delivery includes transparent window foils.


Built-in state

The spacer beams between the windows


Assembly Instructions available soon; To the order information page ... click ...

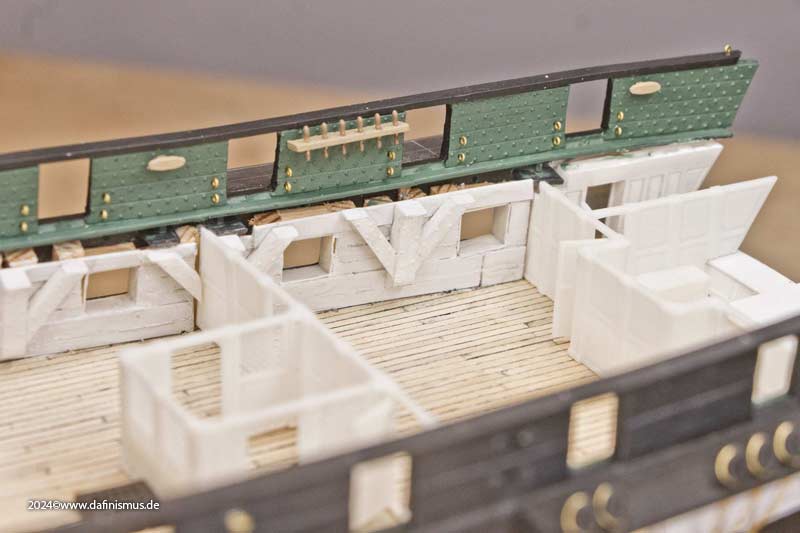

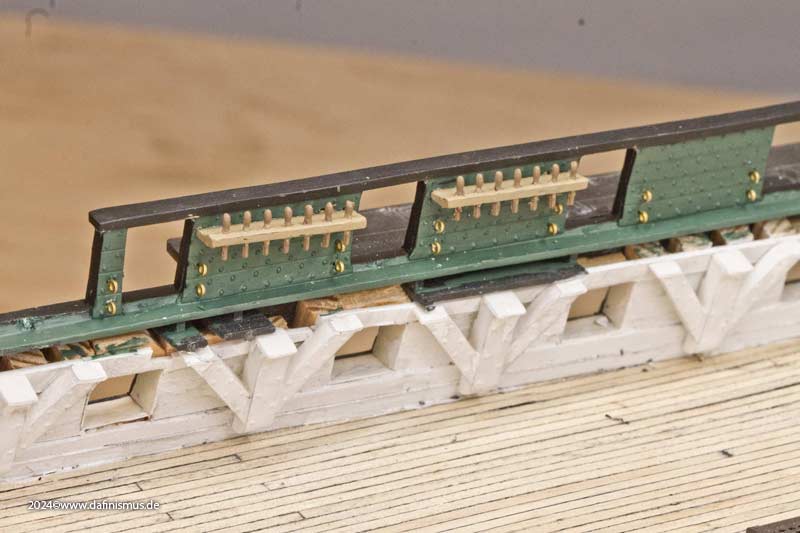

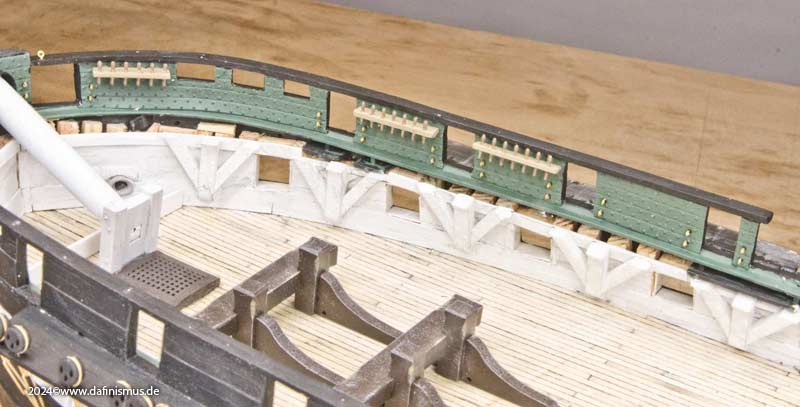

Resin Con 7: Planking inner Bulkwards Spardeck

Complete set to double up the inner bulkwards of the spardeck. Including several spares.

Assembled Version.

Assembly Instructions available soon; To the order information page ... click ...
